Building Alarms

Protect your investment and improve your return on benefit

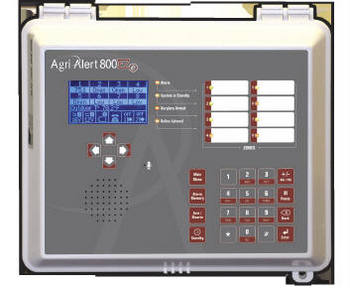

Agri-Alert 800Eze

System has all the basic Agri-Alert features plus:

  • Agri-Alert's famous "Spike Block" lightning protection;
  • Environment proof pvc enclosure;
  • Non-volatile event buffer & alarm memory;
  • Built-in microphone for on-site listening;
  • 8 'supervised' zones;
  • Individually programmable as temperature, dry contact, or burglary zones;
  • Zones can be activated or bypassed individually.

New, graphical LCD screen :

  • View information quickly & more clearly ;
  • Intuitive screen design;
  • Easy navigation through menus.
  • Bright Tri-color status LEDs for each zone;
  • Easy to service PCB with plug-in connectors;
  • Re-settable fuses on PCB; no more blown fuses to change;
  • Integrated rechargeable back-up battery;
  • Programmable using PC software and SD card;
  • Separate plug-in phone dialer card for easy serviceability;
  • 2 output relays that can be activated by phone;
  • Can call up to 8 different phone numbers (home phones, pagers, cell phones, etc);
  • Recordable messages for system id and individual zone voice labeling;
  • Acknowledge alarms by phone;
  • Call in from off site for zone temperatures & system status reports;
  • Auxiliary 12vdc power supply (AA-WM3000 wireless compatible);
  • Outdoor temperature compensation feature (requires additional card).

AGRAA800EZE Agri-Alert 800EZE KIT W/OUTDOOR TEMP CARD
AGRAA800EZE-1 Agri-Alert 800EZE KIT  - NO OUTDOOR TEMP CARD
Ordering Information






Agri-Alert 9600

  • Grouping Zones:  Group all zones in a barn.  When the barn is empty all zones can be shutdown with one entry.  Only 4 wires between master, keypads and transponder.  Simple installation.  Reduces wiring costs in multiple barn or room installations
  • Configure zones for Pulse:  Water pressure  0-5 Volt Sentor:  Pressure Gauge  4-20 MA Sensor:  RPM
  • Event Memory :  Records all system events such as alarms, arming, disarming, acknowledgements, dial outs, parameter adjustments etc...  When the memory is full, the oldest events are deleted

  • Audio Message:  Easy to identify the zone when calling the system on the phone.Know exactly where the alarms are coming from, and what it is.
  • Dial Out:  Up to 16 phone numbers, Recall feature:  restarts the dial out sequence when an alarm has been acknowledged but not reset.
  • Line Seizure :  Alert interrupted a phone conversation and begin Dial Out. Prevents Dial out problems when a phone in to hung up properly
  • Monitoring Station:  Can call you first, and then the monitoring station No delay in getting the alarm while the monitoring station phones other clients
  • Password :Records all in and outs of registered password holders:  what time they came in, what time they left.  Installer password & one Master plus ten user passwords
  • Local Siren:  Save unnecessary dialouts:  most alarms occur when somebody is present.  A siren will give you enough time to locally acknowledge the alarm before the dial out begins. Extra Protection:  Detect any malfunction of the telephone line. Automatically activate the siren. Programmable Time Delay:  On siren activation
  • Test Program:  Automatically tests complete system including fuses and battery. Memory record time of Test (Support insurance claims).
  • Sophisticated Lighting and Surge Protection:  Gas tubes are used as a first protection / Varistor and Polywitch are used
  • Local Siren:  Save unnecessary dialouts:  most alarms occur when somebody is present.  A siren will give you enough time to locally acknowledge the alarm before the dial out begins.  Extra Protection:  Detect any malfunction of the telephone line. Automatically activate the siren.  Programmable Time Delay:  On siren activation
  • Test Program:  Automatically tests complete system including fuses and battery. Memory record time of Test (Support insurance claims).
  • Sophisticated Lighting and Surge Protection :  Gas tubes are used as a first protection / Varistor and Polywitch are used as second protection  / Filters are used as a third protection
  • Enclosure:  Water and dust tight to cope with barn conditions. / Battery is in a separate Enclosure.  No danger of a leaking battery corroding the Master Control.   Water and dust tight to cope with barn conditions. / Battery is in a separate Enclosure.  No danger of a leaking battery corroding the Master Control as second protection / Filters are used as a third protection

Ordering Information

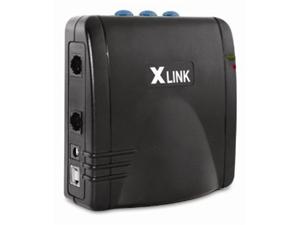

XLink BTTN Cellular Bluetooth Gateway
Can be used for Building Alarms

Connect THREE Cell Phones and a Standard Telephone Source to your Regular Phones.
If you have cell phones and a land line or a VOIP line and have regular telephones throughout your home or office then you need the XLink BTTN.

The XLink BTTN connects up to three cell phones to regular corded or cordless telephones. It also has a standard telephone line input so that you can connect a land line or a VOIP adapter to it as well. All four telephone sources can now be accessed from regular telephones through the XLink.



The XLink BTTN allows you to use your cell phone through your regular home telephones. It has all the same features at the XLink BT and also has an additional telephone line input. This input can be used to connect to a regular telephone service or a VOIP box. Once setup all your telephone sources: cellular, landline or VOIP will all ring through to your regular telephones!Using Bluetooth® wireless technology, the XLink™ BTTN communicates wirelessly with your cell phones. There are NO extra cables to buy. Whenever your cell phones are placed within range, the XLink™ BTTN will automatically connect to them.

The telephone connector output of the XLink works the same as a telephone line from the phone company. You can connect any standard telephone equipment to it. This includes telephones and answering machines. You can even connect it to office phones systems.

The telephone input connector of the XLink BTTN is that same as any telephone. You can connect any analog telephone source to it. This includes the standard phone line from the phone company or a source such as VOIP adapters

AGRDNTXBTTN  X-Link Bluetooth    Ordering Information
