Cup Waterers & Nipples


Wean to Finish Cup Waterers

Koca Stainless Steel
Pig Drinker Waterer with 48" Pipe

  • Bowl is 12" tall, 8" wide, 5" deep
  • 48" bent 1/2" pipe
  • Structured to minimize water waste
  • No dead zone. Eliminates caking inside of water cup, making it more hygienic
  • Projected edges to avoid dust and manure inside of water cup
  • Edges are oval to avoid injury to pig’s mouth.
  • Edges on the back of the cups are smoothly rolled eliminating injury

KOCA Cup Waterer
w/48" Stainless Steel Pipe & Nipple
VITCWSSA48
Ordering Information

Val-Co Stainless Steel
Pig Drinker Waterer with 48" Pipe

  • 7-1/2" Wide x 11-1/2" Tall x 5-1/2" Deep
  • All components of these drinkers (cup, pipe, nipples & fasteners) are made with 304 grade stainless steel for durability and longevity.
  • Nipple included has a rubber slug inside instead of a spring.
  • 30 weaners per bowl or 20 finishers per bowl
  • Very little or no water waste
  • Mounted 4" from floor

Val-Co Stainless Steel Cup Waterer
w/48" Stainless Steel Pipe & Nipple
VITCWSS
Ordering Information

Drik-O-Mat Wean to Finish
Stainless Steel Cup Waterer with 48" Pipe

  • 8" Wide x 12" High x 5-1/2" Deep
  • 30 weaners per bowl or 20 finishers per bowl
  • Very little or no water waste
  • Nipple is positioned low, and supplies only the amount of water that the pigs consume.
  • Stainless steel cup with bended lip
  • Mounted 4" from floor

Drik-O-Mat Stainless Steel Cup Waterer
w/48" Stainless Steel Pipe & Nipple
VITCWSSF48
Ordering Information

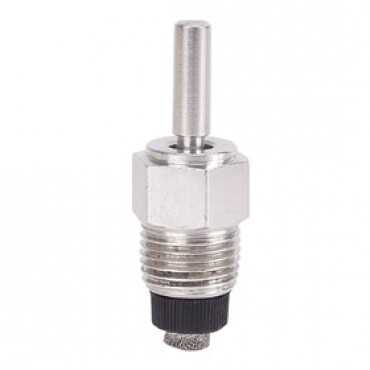

Replacement Nipple
for Stainless Cup Waterers
Comes with rubber slug
VITCWSS48NR
Ordering Information

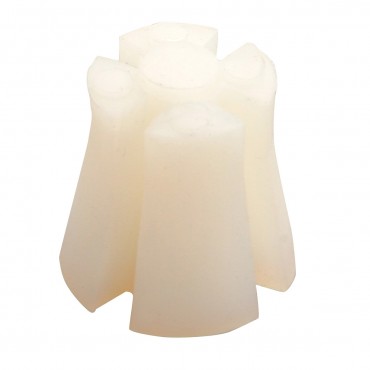

Replacement Rubber Slug
VITCWSS48R
Ordering Information

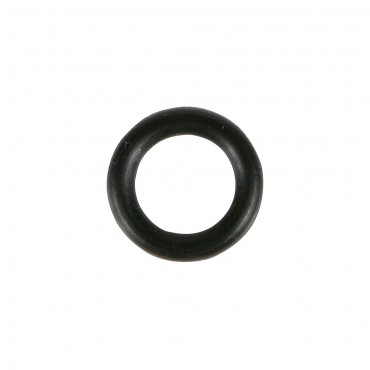

Replacement O-Ring
VITCWSS480
Ordering Information

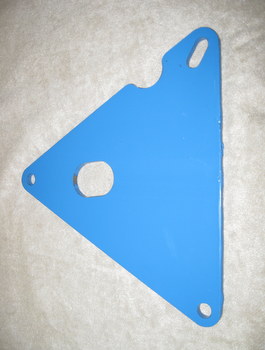

Triangle Backing Plate
(used to mount a
single cup to a gate)
VITCWSSF48BP
Ordering Information

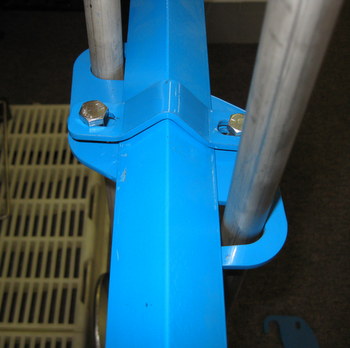

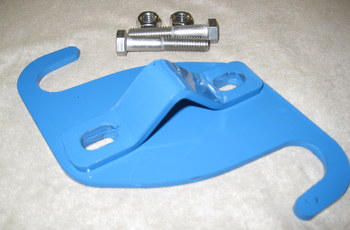

Top of Gate Pipe Holder
Includes 3/8" x 1-1/2" stainless bolts & nuts
VHGTRJSBK
Ordering Information

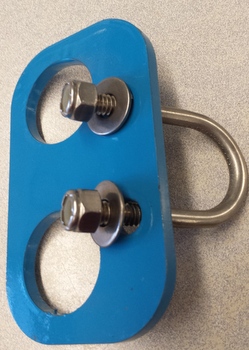

Nursery Water Pipe Holder Kit
Includes: nursery water pipe holder &
1/4" x 2" stainless u-bolt, nuts & washers
VHGTRJSNGBRKK
Ordering Information
Nursery Cup Water

Monoflo Stainless Steel
Nursery Cup Waterer with 6" Pipe

  • 5" Wide x 7" Tall x 4" Deep
  • From front of cup to nipple = 2 3/4"
  • 6" FPT x FPT Stainless Steel pipe
  • Monoflo FPT Stainless Steel Nursery Nipple

MONCUPN
Ordering Information

Replacement Nipple for Monoflo Cup Water
Female Thread Nursery Cup Nipple Replacement
MON3505
Ordering Information

Farrowing Crate Cup Water

Farrowing Crate Cast Iron Cup Waterer
Model 33 CI Cup

  • Cast Iron Cup with powder coat finish “Super Strong” stands up to tough abuse.
  • Unique design allows uniform water control.
  • Big enough for sows, yet small enough for baby pigs
  • All Models use the same tried and proven, non-siphoning trouble free 393 valve
  • Stainless Steel trip plate and housing
  • Measures 7" X 5 1/2" X 2"

TRJS16104
Ordering Information

Extra/Replacement Wet Nipple for Cup Waterers
VITCWSS48NR
Ordering Information

Trojan BB-09 Waterfount Waterer
An Excellent “All Purpose” Automatic Water Bowl
W/ Drain Plug For Easy Cleaning

  • Float controlled for rapid refill. Nothing for your animal to activate for the water to flow
  • No training needed
  • Automatic shut off when water is refilled
  • Strong high grade nylon construction with heavy metal guard & shield
  • Plastic float, no water saturation like styrofoam floats
  • Water supply attaches from the top left or right side
  • Adjust the water level with the float adjustment
  • Mounts on wall using lag bolts (not included)
  • Clean fresh water is refilled back into the water bowl as the animals drink the water
  • Drain plug molded into the bowl for easy clean out.
  • Water bowl is angled down towards the drain for clean out.
  • 5-3/4" tall x 14" long x 10-3/4" wide Bowl depth: 4 1/2"
  • Perfect for a variety of animals including: pigs, dogs, horses, cattle, sheep and goats

Trojan BB-09 Water Fount Auto Livestock Bowl Waterer TRJS60273
Ordering Information

Hose Barb Adapter to Attach Garden Hose to Waterer WP12A07
Ordering Information

Nursery Pig Nipples

Monoflo Model 3515 Nipple Drinker

  • ½" x 3/8" with hex body for easy socket installation.
  • The 3515 features the three position orifice which provides adjustable flow rate.
  • The stainless steel dome and spring are also standard.
  • Ideal for piglets up to 80 lbs

MON3515-75
Ordering Information

Trojan Spiglet Model 97

"Simply the Best" . . . Designed especially for small pigs. Use in farrowing stalls, creeps and nurseries. Body and trigger are built of corrosion resistant 304 stainless steel. Slotted filter to keep foreign matter out of valve. Can be used with pressure or gravity systems.

  • Long Lasting 400 Stainless Steel body and trigger
  • Adjustable to three water flow rates
  • Screen filter keeps foreign matter out of valve
  • Built in playquard protects trigger action
  • For use in farrowing Stalls, creeps and nurseries
  • Rounded trigger
  • Easy for baby pigs to activate trigger
  • Outstanding for baby pigs
  • 5/8 Inch Bite on Water Supply Trigger

TRJS17151
Ordering Information

Lixit Pig Nipple
For Quality and Dependability

  • Protected from debris caused leakage with large domed filter screen
  • 5 YEAR WARRANTY
  • Stainless steel construction
  • Farrow to finish application
  • Patented center flow water delivery
  • Operates at 5-100 psi water pressure
  • Adjustable water flow

L-70 Lixit Pig Nipple
LIXITL70
Ordering Information

Sow & Hog Nipples

Trojan Model 75
US model

Tough design for longer life. Slotted filter to keep foreign matter out of valve. Adjust orifice without removing nipple body. Standard ½ inch connection.

  • Long Lasting non-corrosive 304 Stainless Steel body and trigger
  • Two wrench flats for easy installation and removal
  • Slotted filter keeps foreign matter out of valve
  • Adjustable to three water flow rates
  • Built in playquard protects trigger action
  • Designed for use with pigs 50 lbs or more
  • Outstanding finisher nipple
  • 3/4 Inch Bite on Water Supply Trigger

TRJS13674
Ordering Information

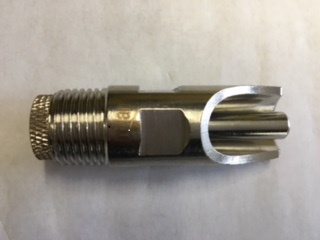

Trojan Model 75 Gravity Flow

  • Trojan 75 gravity flow nipple with metal back orfice


TRJS13875G
Ordering Information

Trojan Model 65

Wet feeder Nipples, Trigger and valve are built from corrosion resistant 304 stainless steel. Standard ½ inch connection. Wrenches flat for easy installation. Preset orifice supplies ample water for wet feeder systems.

TRJS13831
Ordering Information

Trojan Wrench Curve Nipple

New Design! Now you can use an ordinary wrench to install this nipple. This nipples uses more material at wrench pressure points for a stronger superior nipple. Two year warrranty.

  • Long Lasting non-corrosive 304 Stainless Steel body and trigger
  • 360 degree Wrench Access, “Exclusive Patented Trojan Feature”
  • Wrench Curve means more material at wrench pressure points for a stronger, superior structure
  • Slotted filter keeps foreign matter out of valve
  • Adjustable to three water flow rates
  • Built in playquard protects trigger action
  • Designed for use with pigs 50 lbs or more
  • Outstanding finisher nipple

TRJS21104
Ordering Information

Edstrom Nursery & Hog Nipples

The Edstrom Hog Valve is very similar in design to the dog drinking valve, delivering all the water hogs need without wasting it. This simple, rugged, reliable design operates without the use of troublesome springs, orifices, or screens. To drink, the pig simply moves the stem by biting on it, which releases water into its mouth. When the pig removes its mouth, the stem is returned to the closed position by the elastic force of the silicone rubber diaphragm. The o-ring seal provides positive water shut-off.

Stainless steel design uses a stem, which the pig moves by biting to release water. When the pig removes its mouth the stem returns to the closed position by the elastic force of the silicone rubber diaphragm. The diaphragm can be flexed millions of times without failure and is not subject to corrosion or mineral buildup. The o-ring provides a positive water seal. Will work on gravity or pressure systems up to 50 PSI. Adjusting the tightness of the retainer screw can vary flow rate. This eliminates the need for orifices and screens. Edstrom nipple waterers carry a 5-YEAR Warranty

The drinking valve is made of stainless steel and has a ½" male pipe thread connection. Designed for pigs 50 pounds and up, it is calibrated to discharge 1.5 quarts per minute at 40 psi and has an operating range of 0-50 psi. The flow rate can be reduced or increased by adjusting the tightness of the retainer screw. The Hog valve works well for goats and sheep too.
We also have special drinking valves for sows and piglets. Our high capacity nipple especially designed for use by breeding stock, is calibrated to discharge 2.5 quarts per minute at 40 psi, with an operating range of 0-50 psi. The Edstrom Piglet Valve is designed for use by baby pigs through 50 pounds and is calibrated to discharge 1.5 pints per minute at 40 psi
Edstrom Sow Nipple
High-capacity nipple especially designed for use by breeding stock. Calibrated to discharge 2.5 quarts per minute at 40 psi.
EDS10741 Ordering Information
Edstrom Hog Nipple
Designed for use by pigs 50 pounds and up.
Calibrated to discharge 1.5 quarts per minute at 40 psi.

EDSNIPHOG

Ordering Information

Edstrom Piglet Nipple
Designed for use by baby pigs through 50 pounds. Calibrated to discharge 1.5 pints per minute at 40 psi.

EDSNIPPIG Ordering Information
Edstrom Piglet Nipple (Trainer)
A special version of the Edstrom Piglet Nipple, it has a stainless steel trainer-screw built into the body. By turning in the screw, the nipple can be set to drip slowly, which helps teach baby pigs to find the water source in the pen. Use on reduced water pressures of 15 to 20 psi.
EDSNIPTPIG Ordering Information

Edstrom Wet/Cup Waterer Nipple
Efficient Hog Watering made easy!

  • Reduces water waste.
  • Provides plenty of drinking water.
  • Extremely reliable.
  • High quality stainless steel material.
  • Trouble-free operation.
  • Easily activated.
  • Pre-wrapped with Teflon tape.

EDS100-4034-303 Ordering Information

Link To Water Brackets Page


Link To Show Pig Pen Waters Page
