Finishing Gates

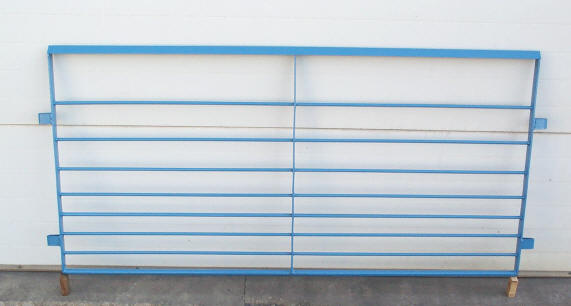

Horizontal Gating

  • Seven 1/2 inch solid shaft horizontal rods make this an extremely durable isowean gate.
  • 7/8 inch solid shaft on bottom rod for extra durability.
  • Standard height is 34" tall, mounted 2" off the floor equals 36" tall.  (44"  tall gate optional)
  • Economical design has pads and posts mount directly to the gates. No need to pay for separate corner posts.
  • Top of each gate is constructed of 1-1/2" angle iron.
  • Flat vertical bars are made of 1/4" x 1-1/2" flat iron.
  • Optional post options.  Also available for vertical gating.
  • Optional stainles steel pad or stainless steel pad with steel post.

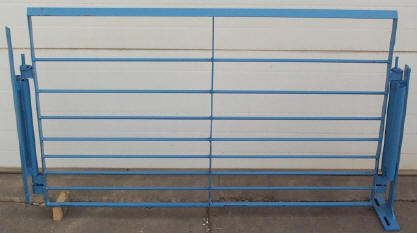

Standard alley gate

Optional back divider gate which swings to lock pig in the front of the pen

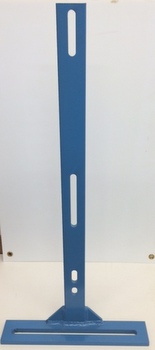

Universal Replacement Post
(replaces most competitor's posts)


VITFG36HQFP-U

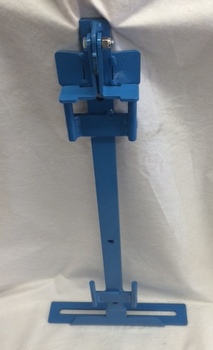

Universal Standard Feeder T-Post


VITFG26HQFP-USS
Stainless Steel Universal Standard Feeder T-Post

Alley Post available in
Steel and Stainless Steel

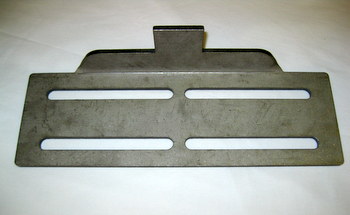

Stainless Replacement Bottom
for T-Post
VITFG36HQPBS

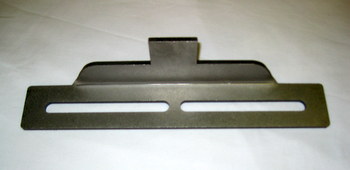

Stainless Replacement Bottom
with Big Pad & 2 Holes
VITFG36HQPBS





´╗┐´╗┐Vertical Gating

  • Heavy duty 1"solid horizontal.
  • Solid verticals are constructed of 1/2" solid shaft on 3" centers creating a 2-1/2" opening.
  • Heavy-duty corner post.
  • Adjustable end brackets for easy installation and management. Lag down posts.
  • Swing gates latch with easy quick latch.
  • Standard height 34", mounted 2" off the floor



Easy Open Quick Latches

  • Simple latch system on both horizontal and vertical gating.
  • Both quick latch systems may be operated with one hand and require no drop rods.



 Link to Vittetoe Show Barn Gates
