Nursery Flooring


Nursery Frame & Floor Combinations

Dura Tuff Nursery Flooring

  • Dura Tuff plastic floor is made out of virgin polypropylene material for durability and longer life
  • Flooring available in 18” x 24” and 24” x 24” pieces
  • 7/16” openings for better manure filtration
  • Locks down on Steel or Fibertruss beams
  • High/Low rib design prevents manure from being pushed out to the corners
  • Cannot span more than 10' lengths
DT18X18 18" x 18" Dura Tuff Natural Nursery Flooring Order Info
DT18X24-N 18" x 24" Dura Tuff Natural Nursery Flooring Order Info
DT24X24 24" x 24" Dura Tuff Natural Nursery Flooring Order Info
DT24X18-N 24” x 18” Dura Tuff Creep / Nursery Natural Flooring Order Info
DT18X18C 18” x 18” Dura Tuff Creep / Nursery Natural Flooring w/Solid Comfort Area Order Info
DT18X24-NC 18” x 24” Dura Tuff Creep / Nursery Natural Flooring w/Solid Comfort Area Order Info

Filter-Eeze Permabeam or Dura Tuff Beam
Perma Beam
5" - EEZ12305
Plastic Feet - EEZ12318
Dura Tuff Beam & Mounting Plate
Perma Beam
Plastic Clip
?6-1/2" J-Bolt - EEZ12362C
7 1/2" J-Bolt - EEZ12362LC
Dura-Tuff Beam Support Base & Clip
DTBSBC

  • Trusses constructed of rugged poly-fiber for maximum life expectancy. Will not rust.
  • Unique three-sided design for heavier load support.
  • Permabeam is made from composite fiberglass.
  • Support beams are 12, 18, or 24 inches apart.
  • Rubber stabilizing feet available as an option.
  • Cannot span more than 10' lengths
5” Fibertruss Permabeam Beam EEZ12305 Order Info
5” T Style Fiberglass Dura Tuff Beam DTFGB5T Order Info
3” T Style Fiberglass Dura Tuff Beam DTFGB3T Order Info
Dura Tuff Fiberglass Beam Closed Mounting Plate DTBMPC Order Info
Dura Tuff Fiberglass Beam Open Mounting Plate DTBMPB Order Info
Dura Tuff Fiberglass Beam Support Base & Clip (to raise fiberglass beam) DTBSBC Order Info
Plastic Feet for EEZ Fiberglass Perma Beam EEZ12318 Order Info

Stainless Steel J-Bolt & U-Bolt to Attach Gating to Fibertruss Beam

6-1/2” U-bolt w/washers & locknuts VITBOLTSSU65C Order Info
6-1/2” J-Bolt nut & washer EEZ12362 Order Info
7-1/2” J-Bolt nut & washer EEZ12362L Order Info

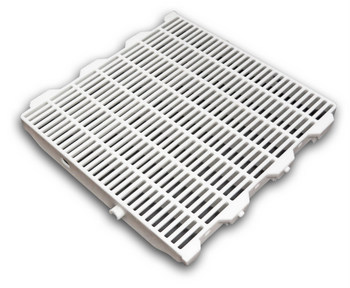

Filter-Eeze Advantage
Nursery Flooring

  • 24” x 24” heavy-duty, stronger slat for pigs up to 150 lbs.
  • 7/16” slot openings for 50% open space manure filtration leaves a cleaner floor to help protect pigs from bacteria-causing diseases

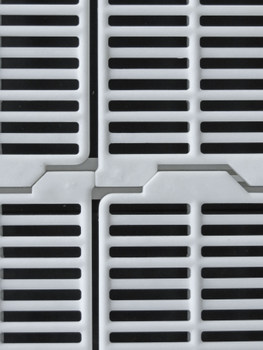

  • ¼” gap around perimeter means easier to power wash clean
  • Made of rugged virgin, high impact polypropylene plastic material that is warm and does not rob pigs of their body heat
  • High / low rib traction bars provide excellent traction for pigs
  • Easily snaps together for fast and easy assembly – reversible panels make installation even easier
  • Locks down on fibertruss beams
  • 3 ½” deep cross support ribs

24" x 24" Advantage Flooring (each)
EEZADVANTAGE
Ordering Information

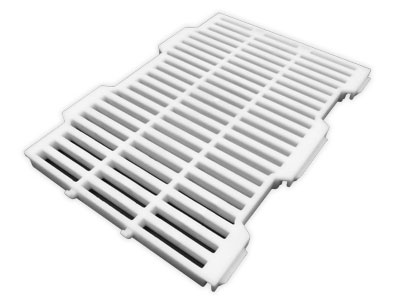

Filter-Eeze Maxima Flooring
The Thermal Comfort Floor

  • Slats overlap flat steel or fibertruss supports
  • Two size slats: 1’ x 24” x 1” or 1’ x 18” x 1”
  • Unique interlocking feature
  • Inverted teardrop design for easy cleaning
  • Manufactured from rugged thermo plastic
  • 3/8” slot openings

12" x 18" x 1"
EEZ13006
Order Informaiton

12" x 24" x 1"
EEZ13111
Order Information
