EquiFount Horse Water System by Miraco


  • MIRACO are the founding developers of a revolutionary patented livestock watering system. After many years of research, MIRACO perfected an energy-free livestock watering system where they were the pioneers in manufacturing automatic livestock waterers from polyethylene materials.
  • The patented, unique ball system, used in their energy-free livestock waterers are both insulated from freezing in the severe cold temperatures of winter (up to – 40 C) and have the added benefit of a cooling affect for the water in the warmer summer months.
  • Farm management cost efficiencies are paramount in modern day livestock farming operations. The MIRACO energy-free livestock watering system has dramatically reduced costs associated with traditional watering systems.
  • Heavy Duty, Rugged, Livestock Safe, Durable, Low Maintenance, Long Life, Reduced Algae, Water Efficient, Energy Free
  • Livestock are guaranteed a year round supply of cool, fresh, clean and efficient water supply. An essential component in achieving optimum livestock management growth rates.

Miraco's EQUIFount Horse Water Systems feature:

  • Smooth rounded edges for safety
  • Durable 100% polyethylene construction; urethane foam insulation
  • Minimum intrusion on stall space
  • Four-bolt installation
  • Ability to plumb from above or below
  • Ample drinking space; plentiful water supply with minimal waste
  • Large, easy drain; no disassembly required
  • Attractive design; offered with several color options

Download the Installation Guide Here

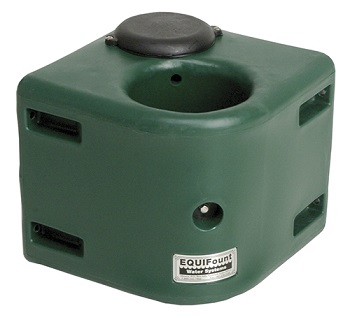

Equi-Fount Model 1100 & 1101

  • CORNER MOUNT unit was made just for horse operations. Ideal for stalls and open barns. Can be plumbed from above or below. Add optional 50 watt heat element and thermostat.
  • Durable poly construction and urethane foam insulation. Easy valve access, four bolt installation. Large drain, no disassembly required. Plentiful water supply with minimal waste.
  • 16" x 16" x 14" tall , weight 22 lbs
  • Optional 22 watt heater
  • Color Choices: Blue (standard), Green, Gray, Black (must request alternate color in comment section when ordering)
Equi-Fount Model 1100
Corner Mount
MIR1100
Ordering Information
Equi-Fount Model 1100 w/Heat
Corner Mount
MIR1101
Ordering Infomation

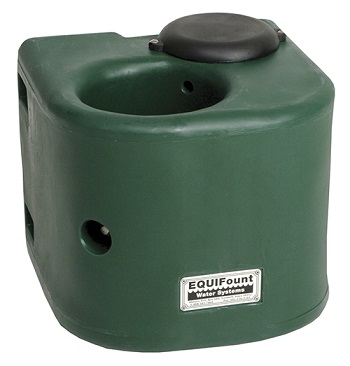

Equi-Fount Model 1200 & 1201

  • WALL MOUNT unit was made just for horse operations. Ideal for stalls and open barns. Can be plumbed from above or below. Add optional 50 watt heat element and thermostat.
  • Durable poly construction and urethane foam insulation. Easy valve access, four bolt installation. Large drain, no disassembly required. Plentiful water supply with minimal waste.
  • Dimensions 16" x 16" x 14" tall, weight 22 lbs
  • Color Choices: Blue (standard), Green, Gray, Black (must request alternate color in comment section when ordering
  • Optional 22 watt Heater

Equi-Fount Model 1200
Wall Mount
MIR1200
Ordering Information

Equi-Fount Model 1200 w/Heat
Wall Mount
MIR1201
Ordering Infomation

834-5 Extension Tube

Cold barns are not a problem for EQUIFount waterers. This insulated extension tube allows water line to enter from below without freezing. Rubber plug can be removed for access to water shut off valve

834-5 Extension Tube
MIR834-5
Ordering Information

Link to Miraco Water Systems for Livestock & Miraco Pet Waters
