Livestock Water Systems by Miraco


  • MIRACO are the founding developers of a revolutionary patented livestock watering system. After many years of research, MIRACO perfected an energy-free livestock watering system where they were the pioneers in manufacturing automatic livestock waterers from polyethylene materials.
  • The patented, unique ball system, used in their energy-free livestock waterers are both insulated from freezing in the severe cold temperatures of winter (up to – 40 C) and have the added benefit of a cooling affect for the water in the warmer summer months.
  • Farm management cost efficiencies are paramount in modern day livestock farming operations. The MIRACO energy-free livestock watering system has dramatically reduced costs associated with traditional watering systems.
  • Heavy Duty, Rugged, Livestock Safe, Durable, Low Maintenance, Long Life, Reduced Algae, Water Efficient, Energy Free
  • Livestock are guaranteed a year round supply of cool, fresh, clean and efficient water supply. An essential component in achieving optimum livestock management growth rates.

Lil Spring

  • Ideal for small animals or groups of small animals.
  • Lilspring models can accomodate multiple pens by installing them in a split-fence application.
  • High impact resistant polyethylene with 5 year warranty
  • Automatic plastic valve
  • Stainless steel spring loaded clip holds access door in place. No wrenches required for easy entry.
  • Bottom drain for inside use 2" threaded fitting underneath for PVC plumbing
  • Optional 250 watt submersible heater, low electrical usage
  • Side access panel

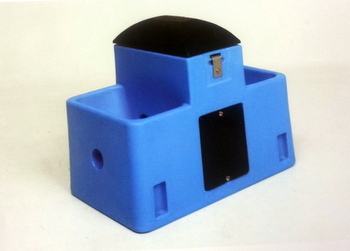

Lil Spring Model 2700 (for Sheep & Goats)

  • 6 gallon capacity
  • 17.5" W x 28.75" L
  • 14" drinking height
  • Weight: 40 lbs
  • Heater optional
  • Blue color standard
Lil Spring Model 2700
MIR2700
Ordering Information
Lil Spring Model 2701
MIR2701
Ordering Information
Lil Spring Model 2800 & 2801
  • 4 gallon capacity
  • 20" W x 16"L x 19"
  • 19" drinking height
  • Weight: 40 lbs
  • Heater optional
  • Blue color standard, special Order Colors: Green, Black, Gray and Tan
Lil Spring Model 2800
MIR2800
Ordering Information
Lil Spring Model 2801 w/Heat
MIR2801
Ordering Information

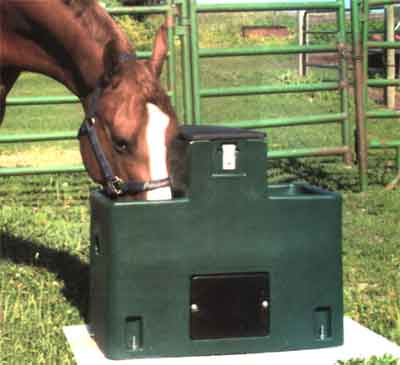

Lil Spring Model 2900 & 2901
  • 6 gallon capacity
  • 30" W x 16 1/2"L x 19"
  • 19" drinking height
  • Weight: 45 lbs (Model 2901 - 46 lbs)
  • Heater Optional
  • Blue color standard, special Order Colors: Green, Black, Gray and Tan

Lil Spring Model 2900
MIR2900
Ordering Information

Lil Spring Model 2901 w/Heat
MIR2901
Ordering Information

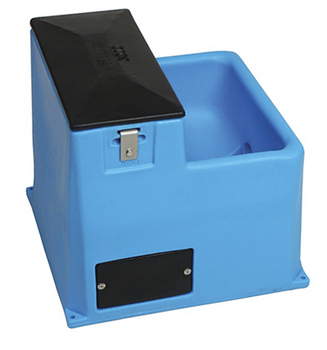

Lil Spring Model 3000 & 3001
  • 5 gallon capacity
  • 24" x 22" L x 21"
  • 16" drinking height
  • Weight: 48 lbs
  • Heater optional
  • Stainless steel anchor bolts included
  • 3” (8 cm) front drain outlet for outside use
  • Optional extension available

Lil Spring Model 3000
MIR3000
Ordering Information
Lil Spring Model 3001 w/Heat
MIR3001
Ordering Information

Extension:

  • 22" W x 24" L x 12" H
  • Weight 20 lbs

Miraco Extension
MIR3002

Lil Spring Model 3100 & 3101
  • Dual Sided drinking access
  • 8 gallon capacity
  • 22" W x 36" L x 27" H
  • 22" drinking height
  • Weight: 74 lbs
  • Heater Optional

Lil Spring Model 3100
MIR3100
Ordering Information

Lil Spring Model 3101 w/heat
MIR3101
Ordering Information
Lil Spring Model 3200 & 3201
  • 25 gallon capacity
  • 24" W x 48" L x 29" H
  • 24" drinking height
  • Weight: 98 lbs
  • Heater Optional
Lil Spring Model 3200
MIR3200
Ordering Information
Lil Spring Model 3201 w/Heat
MIR3201
Ordering Information
Lil Spring Model 3500 & 3501
  • 40 gallon capacity
  • 42" W x 42" L x 26" H
  • 26" drinking height - 168" drinking space
  • Quick release valve access cover
  • Diagonal valve compartment lets more cattle drink
  • 24" hook-up hose with shut off valve
  • Stainless Steel anchor bolts
  • 2 bottom drains
  • Heater Optional
Lil Spring Model 3500
MIR3500
Ordering Information
Lil Spring Model 3501 W/Heat
MIR3501
Ordering Information

Miraco Energy Efficient Waterers

  • 5 year warranty
  • 2" to 3" Urethane insulation
  • Minimum head required or use E/fount
  • Polyethylene construction
  • Slopped bottoms for easier cleaning
  • Roll-away ball enclosures

Mirafount
& E-Fount

Mirafount the original energy free waterer first introduced in 1974. Time tested with models to serve all livestock needs. Mirafount energy free waterers keep water from freezing with as little as 15 animals drinking in cold climates. The Mirafount also keeps water cool and algae free in the summer months. Livestock like the cool clean water provided by Mirafount automatic energy free waterers.

E-Fount models are shipped with electric heat built-in. These models are ideally suited to operations where just a few animals drinking infrequently or if extreme cold weather conditions are persistent


Model 3330 & 3330E
  • 15 gallon capacity
  • One 8.75" opening
  • 9" ball closure
  • 26" x 28" x 14"
  • Weight: 59 lbs

Mirafount Model 3330
MIR3330
Ordering Information
E-Fount Model 3330E (Electric Heat)
MIR3330E
Ordering Information

E/Fount Model 3340-E
  • 15 gallon capacity
  • Four 6" openings
  • 7" Ball closure
  • 26" x 28" x 14"
  • Weight: 57 lbs

E-Fount Model 3340-E
MIR3340E (Electric Heat)
Ordering Information
Model 3390 & 3390E
  • 44 gallon
  • Two 10" openings
  • 10.75" ball closure Convertible top/drinker openings
  • 29" x 43" x 20" tall
  • Weight: 129 lbs
Mirafount Model 3390
MIR3390
Ordering Information
E-Fount Model 3390E (Electric Heat)
MIR3390E
Ordering Information
Model 3410 & 3410E
  • 6 gallon capacity
  • Two lift-up lids
  • 10" openings
  • 19" x 34" x 16"
  • Weight: 57 lbs

Mirafount Model 3410
MIR3410
Ordering Information
E-Fount Model 3410E (Electric Heat)
MIR3410E
Ordering Information
Model 3410-4 & 3410-4E
  • 15 gallon capacity
  • Four lift lids
  • 10" openings
  • 34" x 36" x 16"
  • Weight: 98 lbs
Mirafount Model 3410-4
MIR3410-4
Ordering Information
E-Fount Model 3410-4E (Electric Heat)
MIR3410-4E
Ordering Information
Model 3465 & 3465E
  • 20 gallon capacity
  • Two - 9.25" openings
  • 10" ball closure
  • 24" x 36" x 18"
  • Weight: 79 lbs
Mirafount Model 3465
MIR3465
Ordering Information
E-Fount Model 3465E (Electric Heat)
MIR3465E
Ordering Information

Big Spring

BIGspring is a complete line of constant-flow watering systems ideally suited for free-stall dairy operations and large feedlots. If you raise beef or dairy cows, you are sure to find the perfect BIGspring model to fit your needs.

Big Spring 6000 & 6001
  • 250 HD beef / 100 HD dairy
  • 60 gallon capacity
  • Length 90” x 33” wide
  • 24” drinking height
  • Weight - 215 lbs.
Big Spring Model 6000
MIR6000
Ordering Information
Big Spring Model 6001 W/Heat
MIR6001
Ordering Information
Big Spring 6100 & 6101
  • 100 HD dairy
  • 60 gallon
  • Length 80” x 36” wide
  • 24” drinking height
  • Weight - 205 lbs.
  • Install with 10" riser or neck rail
Big Spring Model 6100
MIR6100
Ordering Information
Big Spring Model 6101 w/Heat
MIR6101
Ordering Information
Big Spring 6200 & 6201
  • 100 HD dairy / 200 HD beef
  • 60 gallon
  • Length 84 x 22” wide
  • 22” drinking height
  • Weight - 150 lbs.
Big Spring Model 6200
MIR6200
Ordering Information
Big Spring Model 6201 w/Heat
MIR6201
Ordering Information
Big Spring 6300 & 6301
  • 150 HD dairy / 300 HD beef
  • 110 gallon
  • Length 142" x 22” wide
  • 22” drinking height
  • Weight - 250 lbs.

Big Spring Model 6300
MIR6300
Ordering Information

Big Spring Model 6301 w/Heat
MIR6301
Ordering Information

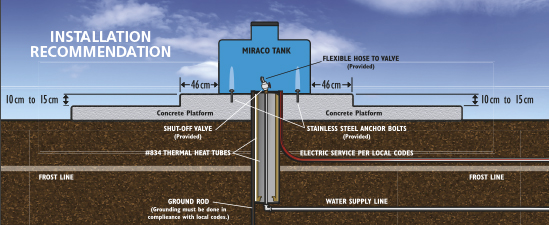

Insulated Heat Tubes

  • This highly insulated tube shields incoming ground water from cold as it passes through the frost level.
  • Polyethylene construction ensures years of trouble-free use.
  • One 30-inch tube and 3 feet of 12-inch drainage tile provides a sufficient heat well in most locations. For northern regions, two 30-inch heat tubes may be required.
  • Dimensions 14" x 30" / 2" insulation
  • Weight 16 pounds


Miraco Insulated Heat Tube
MIR834
Ordering Information

Link to other Heaters & De-Icers for Waters

Farm Innovator Submergible De-Icer Heater

  • 250 or 500 watt Donut Heater
  • 120 volt
  • Useable on plastic or rubber tubs
  • Automatic on/off thermostat built in

MIRHEATC-250
Ordering Information

MIRHEATC-500
Ordering Information

Cable Line Heater - Not Submersible

  • Area heater, wraps around outside of pipe
  • Thermostat Controlled Cable Line Heater
  • 110 volt or 220 volt
  • Designed for Heat Well
  • Cannot be submerged in water

MIR919-5
Ordering Information

LilFount Pet Waterer

LilFount models are designed for small animals and multiple purposes.
This model delivers cool, clean water AUTOMATICALLY for many years.

Lilfount 1000 & 1001

  • Polyethylene construction & insulation
  • 5 gallon capacity
  • Bowl refills automatically, no moving parts
  • Outside Dimensions 14" x 30" / 2" insulation
  • Weight 16 pounds
  • Heater optional

Lilfount Pet Water Model 1000
MIR1000
Ordering Information

Lilfount Pet Water Model 1001 w/Heat
Mir1001
Ordering Information

Link to Miraco EQUIFount Horse Water System
