Fans

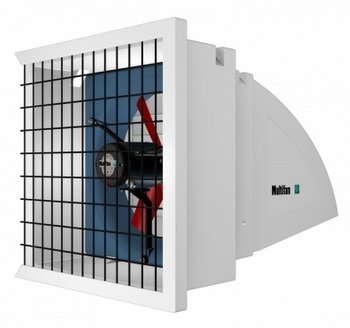

Multifan System 1 Fan
by Vosterman

The Multifan System 1 includes fan, plastic hood, shutter and wireguard and are designed for easy flush-mount installation. System-1 fans include TEAO (Totally Enclosed, Air Over) electric motors. These motors are wash down capable, meet the UL 507 standard for agricultural use and will perform in the most difficult conditions.

The hood is made from durable plastic, which is UV protected. System-1 fans are delivered unassembled and have a 3 year warranty on the motor.

Specifications:

  • Available diameters range from 10" to 24"
  • Include TEAO (Totally Enclosed, Air Over) electric motors
  • Various frequencies (50 Hz, 60 Hz)
  • Air volumes at 0 Pa for 50 Hz fans range from 1.415 CFM to 7.075 CFM
  • Air volumes at 0 Pa for 60 Hz fans range from 870 CFM to 6.500 CFM

The Multifan System 1 is a complete ventilation unit consisting of a Multifan fan, wire guard, shutter and plastic casing. The System 1 is characterizes itself through an easy installation. With the simple click system, the fan, shutter, wire guard and casing can be installed easily. Weather influences (wind, rain) are reduced to a minimum. Especially at the minimum ventilation, the system guarantees an accurate ventilation level. Together with the Multifan fan the system 1 enables a long life time with minimal maintenance.

Features:

  • “Flush-mount” installation
  • Protects against weather influences
  • Compact system: fan, wire guard shutter and casing
  • No obstacles inside the building
  • Special bearings with special grease
  • The windings are provided with 3 insulation layers
  • All parts can be recycled
  • Water resistant (IP55)

Advantages:

  • Low power consumption
  • Long durability
  • High reliability
  • Low maintenance
  • Easy to install
  • Easy cleaning
  • Suitable for different applications
  • Safe in use
  • Low noise level
  • 3 year warranty on the fan

Energy efficient by design
The Total Ventilation System Featuring:

  • Unique fiberglass Venturi is the Multifan secret to resisting traditional shrinkage and providing consistent uniformity
  • One-step installation, flush mount.
  • Aerodynamic designed. Hood protects against external wind pressure.
  • Three Year Warranty
  • All fans can operate at variable speed.
  • Most energy efficient fan available.
  • RV stabilized PVC shutters
Item Number Model Size & Volt .05" S.P.
MULK4E30240Q 4E30 12" 240V 1231 Ordering Information
MULK4E40240Q 4E40 16" 240V 2520 Ordering Information
MULK4E45240Q 4E45 18" 240V 3250 Ordering Information
MULK4E50240Q 4E50 20" 240V 4140 Ordering Information
MULK6E63240Q 6E63 24" 240V 6110 Ordering Information
MULK4E30120Q 4E30 12" 120V 1360 Ordering Information
MULK4E40120Q 4E40 16" 120V 2550 Ordering Information
MULK4E45120Q 4E45 18" 120V 3600 Ordering Information
MULK4E50120Q 4E50 20" 120V 4320 Ordering Information
MULK6E63120Q 6E63 24" 120V 6300 Ordering Information

Multifan System 4
by Vosterman

Fan, Housing, Wireguard, Shutter
240 Volt

The System 4 is an economical fan package, including fan, housing, wireguard and shutter. The System-4 is CSA approved, with a TEAO, washdown capable motor. Inside mounting is flush, eliminating obstructions along walkways. Condensation flows down and away from the barn, keeping walls clean and dry.

Multifan System 4

The System 4 is an economical fan package, including fan, housing, wireguard and shutter. The System-4 is CSA approved, with a TEAO, washdown capable motor. Inside mounting is flush, eliminating obstructions along walkways. Condensation flows down and away from the barn, keeping walls clean and dry.

Specifications:

  • Available diameters range from 12" to 36"
  • Air volumes at 0 S.P. for 60 Hz fans range from 1,316 CFM to 9,860 CFM
  • Housings available in sizes 12" to 36"

Affordable Benefits:

  • All fans can operate on variable speed.
  • Motor is totally enclosed in an air-over design with diecast aluminum housing, featuring automatic thermal protection & heat resistance to 311°
  • Three year warranty.
  • Outer fan housing is UV-treated polyethylene.
  • Inside mounting is flush, eliminating obstructions along walkways

Item # Impeller .05P" SP RPM AMP
MULS4124E2A 12" 1187 1600 .50 Ordering Information
MULS4164E2A 16" 2520 1600 1.10 Ordering Information
MULS4184E2A 18" 3470 1600 1.45 Ordering Information
MULS4204E2A 20" 3620 1600 2.10 Ordering Information
MULS4246E2A 24" 6520 1000 3.10 Ordering Information
MULS4286E2A 28" 7000 1000 3.20 Ordering Information
MULS4368E2A 36" 8990 790 3.50 Ordering Information

Mulfifan MF Flex Stir Fans
by Vostermans

Mf-Flex Fans

Vostermans Ventilation Inc offers a wide range of Mf-Flex fans. The Mf-Flex program offers numerous possibilities because of differences in:

  • Diameter
  • Airflow
  • Frequency
  • Voltage
  • Suspension
  • Attachment
  • Impeller material

Mf-Flex facts

  • 3 Year warranty on motor
  • Excellent performance in wet environments
  • Variable speed capability
  • Best heat dissipation with aluminum motor housing

Mf-Flex options

  • Mf-Flex offers different flexible mounting alternatives:
  • 3 Supports, flexible length for panel or tube fans
  • 4 Supports, flexible length for panel or tube fans
  • Nema base mounting 48 for panel or tube fans
  • Nema base mounting 56 for panel or tube fans
  • Yoke mounting for pedestal or basket fans Basket mounting for pedestal or basket fans
  • Grill suspension
  • 3 year warranty
  • Totally enclosed motor
  • Washdown capable
  • Universal mounting yoke
  • Variable speed motor
  • White durable grill
MULFXSTIR20-3 20" 5500 3.8 2.0 1750 1/3 Ordering Information
MULFXSTIR24-3 24" 8000 3.8 2.0 1750 1/3 Ordering Information
MULFXSTIR24-2-6 24" 8500 6.7 3.1 1000 1/2 Ordering Information
MULFXSTIR30-2 30" 10,000 6.7 3.1 1000 1/2 Ordering Information

Multifan MF Flex Replacement Motors
by Vosterman

Mf-Flex Motors

Under the brandname Mf-Flex, Vostermans Ventilation Inc manufactures an extremely flexible motorline with a wide application field.

The motorline is worldwide available in most of the following technical combinations:

  • 4-poles to 8-poles
  • 1/16 HP to 1 HP
  • 50 Hz and 60 Hz
  • 110V, 120V, 230V, 240V, 240/420V, 230/400V
  • Single phase or three phase
  • 770 RPM to 1680 RPM
  • Service factor between 1,00 and 1,40

The Mf-Flex motor, with aluminium extrusion profile, is a TEAO motor (Totally Enclosed Air-Over motor). For proper cooling, the motor has to be mounted in the airstream. Mf-Flex motors also meet CE standards and fulfill the international specifications of approved institutes such as CSA and UL. They are produced in accordance with IP55 standard (dust and water resistant) and the materials used meet the standard of insulation class F (resistance to temperatures up to 311ºF).

Match this flexible design with Vostermans Ventilation Inc's extensive impeller program, and we can offer the perfect motor-impeller combination as per customer's specification

For All Brands of Exhaust and Stir Fans

  • Replaces direct drive fans 12” to 36”
  • Variable speed motor
  • Wash down capable
  • Totally enclosed air over
  • 3 year warranty
  • Double sealed bearings
  • NEMA frame bases
  • Multiple arm mount options
  • Made for Multifan impellers


Livestock Fans
These fans are second to none in quality and performance.
If you want quality and performance in your fans, look no further.

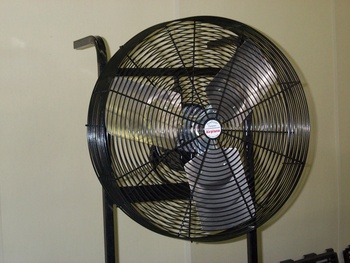

24" Airplane Fan

  • 8000 CFM's
  • 24" Fan with 1/2 hp motor
  • Super strong heavy-duty cage for the best durability
  • Removable front cage for easy cleaning!
  • Aluminum high pitch three blade impeller
  • Black cage
  • 8' cord with on/off switch included

Optional Hanging Brackets:

  • 12" Hanging "L" Bracket,
  • 19" Hanging Twist Bracket
  • 11" Small Hanging Bracket

24" Airplane Fan
VCEFAN
Ordering Information

Airplane Fan
Fan stand cart sold separately

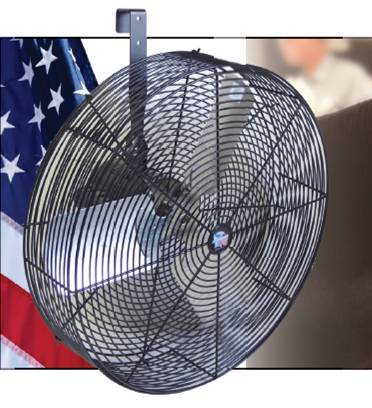

Schaefer F5™ Livestock Fan

Rugged dependable performance • Maximum animal comfort
Professional appearance • Top-line hair growth


A high velocity circulation fan designed to provide the ideal environment for maximum show animal comfort and hair
growth. Built to withstand the impact of show travel, the F5 comes
with dependable, long lasting motor and guards for extreme durability

  • Industry leading airflow and air velocity to keep livestock cool and maximize hair growth.
  • Heavy-duty steel guards with reinforced ribs and outer rings, built to withstand
    the impact of show travel.
  • Powder coated black finish over guards for stylish appearance that will blend
    with show display.
  • Corrosion resistant inside and out for durability and long life.
  • Powerful motors with unique low solidity ratio blade for best-in-class efficiency
    and quiet operation without sacrificing airflow and speed.
  • Flexible, 7 foot cord with water resistant and weather proof on/off switch for convenient operation.
  • Hang mount included for easy set-up and take-down.
  • Made in USA with dependable, long lasting components

24" F5 Schaefer Fan
VCEFAN-F5
Ordering Information

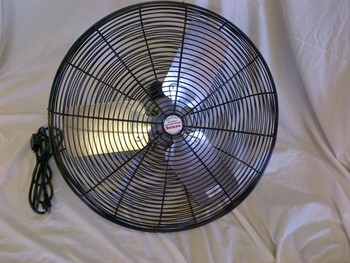

24" Deluxe Fan with Aluminum Blade

  • 8000 CFM's
  • 24" Fan with 1/2 hp motor
  • 2 year warranty on motor
  • 3 aluminum blades
  • Black economy cage
  • 8' cord with on/off switch included
  • No Hanging Bracket included

Optional Hanging Brackets:

  • 12" Hanging "L" Bracket,
  • 19" Hanging Twist Bracket
  • 11" Small Hanging Bracket


24" Deluxe Fan w/Aluminum Blade
VCEFAND-A
Ordering Information

24" Deluxe Fan with Poly Blade

  • 8000 CFM's
  • 24" Fan with 1/2 hp motor
  • 2 year warranty on motor
  • Poly four blade impeller with OSHA guard
  • Black economy cage
  • 8' cord with on/off switch included
  • No Hanging Bracket included

Optional Hanging Brackets:

  • 12" Hanging "L" Bracket,
  • 19" Hanging Twist Bracket
  • 11" Small Hanging Bracket

24" Deluxe Fan w/ Poly Blade
VCEFAND
Ordering Information

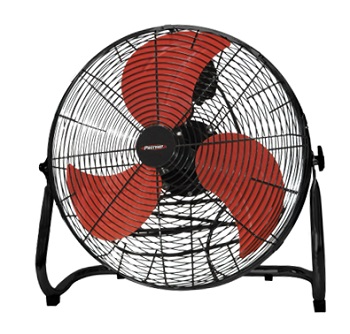

20" DELUXE 3 SPEED FLOOR FAN
WITH 9' CORD (1/5 HP)

  • Our Deluxe Floor Fan delivers fresh air quickly to localized spaces.
  • An efficient way to cool all types of spaces with or without air conditioning.
  • Efficient direct drive design, helps to conserve electricity.
  • Heavy-duty all metal construction.
  • 3 speed fan with 9' cord
  • 3,600/ 4,200 / 4,800 CFM

20" Deluxe Floor Fan
VCEFAND-FLOOR
Ordering Information

Link to Show Stopper Fans & Parts
