Farrowing Crates & Feeders for Farrowing Crate

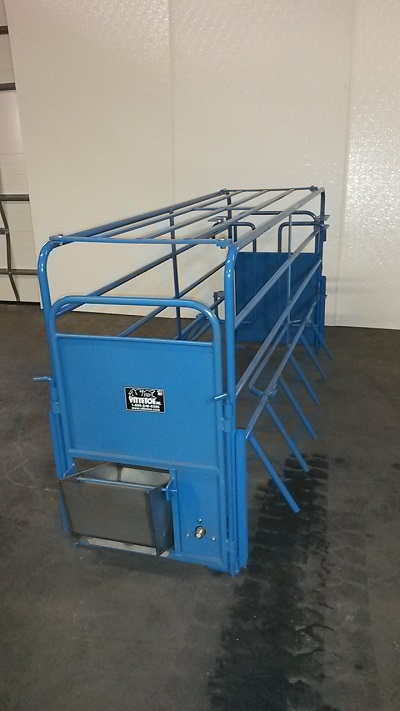

Premium Tube / Finger Farrowing Crate

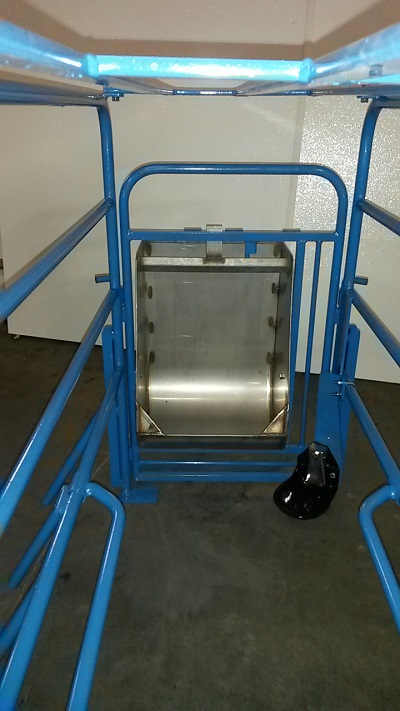

Vittetoe Premium Tube Crate
with Round Bottom Sow Feeder
and Trojan cup water.

Stainless Steel Construction :

• Front and rear doors
• Crate bottoms
• Feeders

Flooring Options:
(Price includes frame, hardware & flooring)

• Cast Iron & Plastic Sides
  $536.75

• Tenderfoot - $565.33

• 3 Gauge wire - $402.93

• 5/16" Wire / Plastic Sides
  $417.81

• Add Legs if needed
  $6.21 each

1/31/19 Prices subject to change without notice

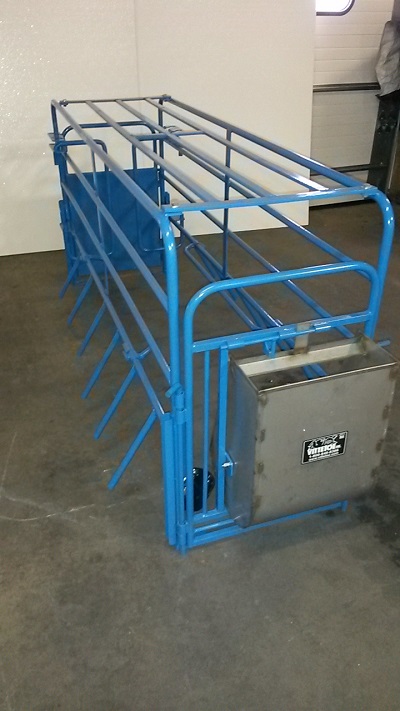

Vittetoe Premium Tube Crate
with Econo Big Bertha Feeder.

Both sides have three adjustments and will swing all the way up if needed.

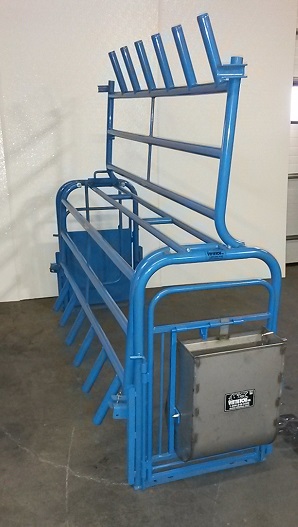

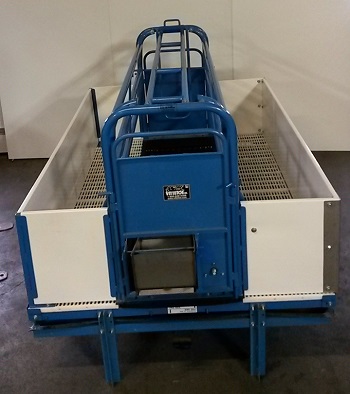

Vittetoe Premium Tube Crate
Complete with cast iron center flooring, deck, plastic panels and a flush pan.

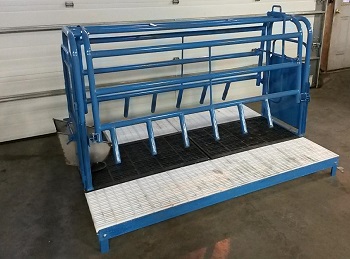

Vittetoe Premium Tube Crate
with cast iron centers, decking and legs.

• The sow area is easily adjustable from 17" to 24". This provides for maximum sow comfort, and maximum pig protection.
• Base flats are made of 3/16" stainless steel, with 1-7/8" solid shaft welded to them. The solid shaft is 8" long and is inserted into the round tubing of the end frame.
• Front and rear doors will swing both ways, and can be completely removed. They are made with 304 grade stainless steel attached to a frame made of 7/8" solid shaft material.
• The finger design allows pigs to access both rows of teats with no siderail bar to obstruct them.
• Sow feeders are constructed of 304 grade stainless steel with rounded bottoms and edges. This allows for easy cleaning and prevents injury to the animals.
• Rump guards are adjustable for maximum sow comfort and minimal pig crushing.
• The Vittetoe crate sits on a standard 5' x 7' frame.
• The bottom rail of the crate is 17" high for maximum avoidance of crushed pigs. The bottom of the fingers are rounded and recessed to insure no rough edges. They extend out and are approximately 7" from the floor, to prevent a thin sow from sliding under them.
• Crates are dip painted blue

Premium Farrowing Crate with
Round Bottom Sow Feeder & Cup Water
(without flooring)
$891.00
1/31/19 Prices subject to change without notice

Premium Farrowing Crate with
Big Bertha Feeder & Cup Waterer
(without flooring)
$930.00
1/31/19 Prices subject to change without notice

Crate has three adjustments on each side to allow six different widths, from 17 to 24 inches

Sturdy solid shaft rear rump guard is also adjustable

Finger crate allows all pigs access to sow's teats.

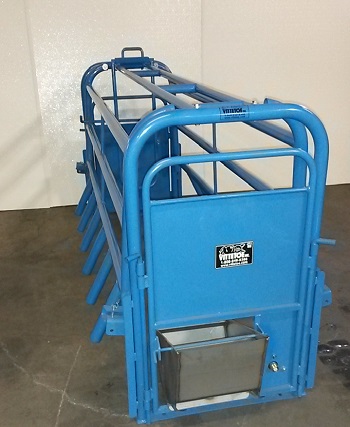

Econo Farrowing Crate with
Round Bottom Sow Feeder
& Cup Water
(without flooring)
$758.00

1/31/19

Econo Farrowing Crate with
Big Bertha Feeder
& Cup Water
(without flooring)
$780.00

1/31/2019

• A Vittetoe quality product designed for today's hog market prices.


• Solid shaft with stainless steel door panels and channels


• Anti-crush rump rod - two options available, mounted on rear door or suspended from top rail. Rump guard pins up when loading sows.

• Anti-crush flip up side bars help eliminate crushed piglets

• Econo Crate non-adjustable standard width 22" (center of side rail to center of side rail)
  When anti-crush rod is up, inside dimension is 19" wide
  When anti-crush rod is down, inside dimension is 15-1/2" wide

• Works great with stainless steel Big Bertha feeder and stainless steel Sow/Pig combination nipple waterer


• Trojan cast iron cup waterer also available

3/23/2018 prices subject to change without notice

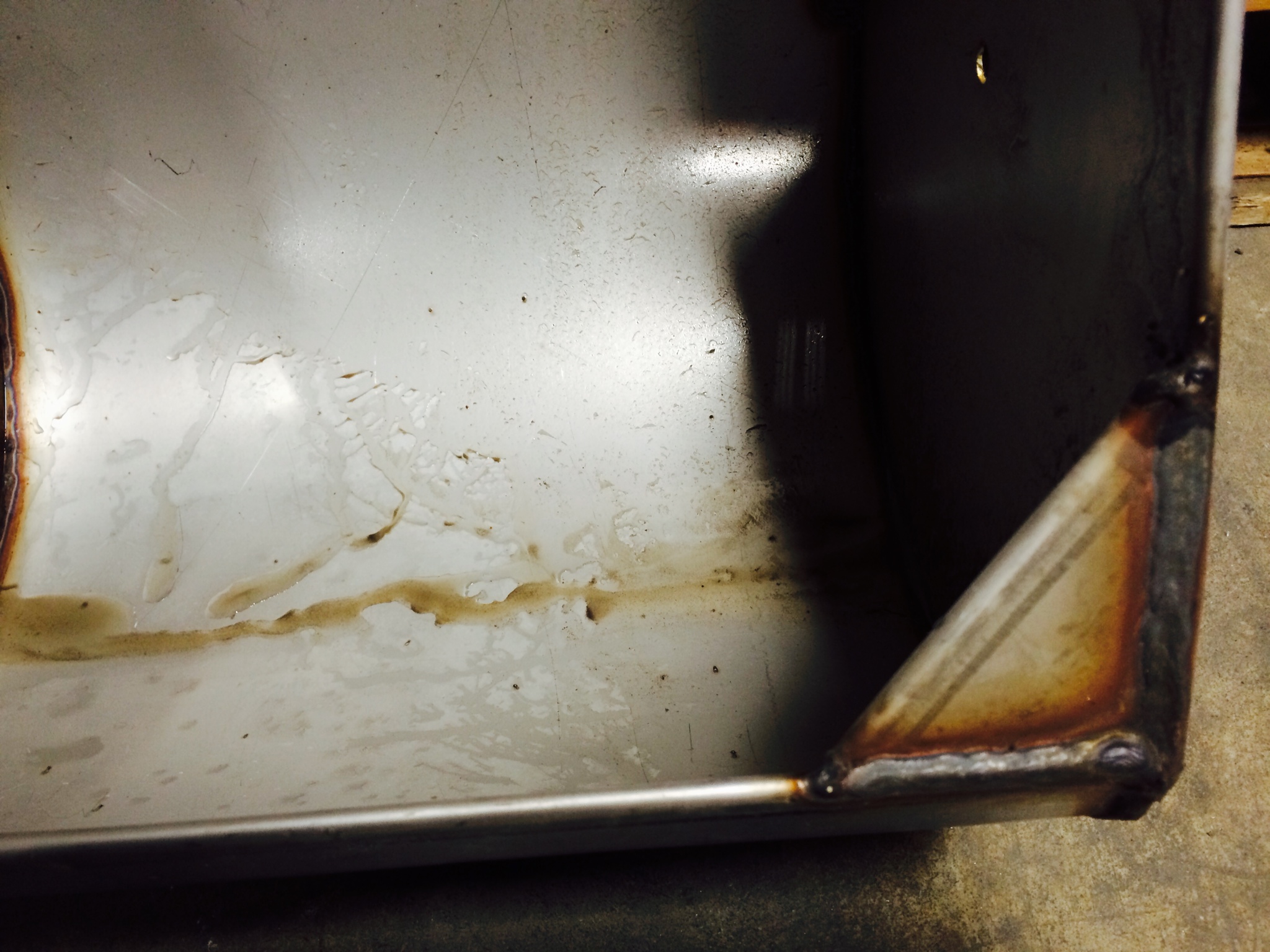

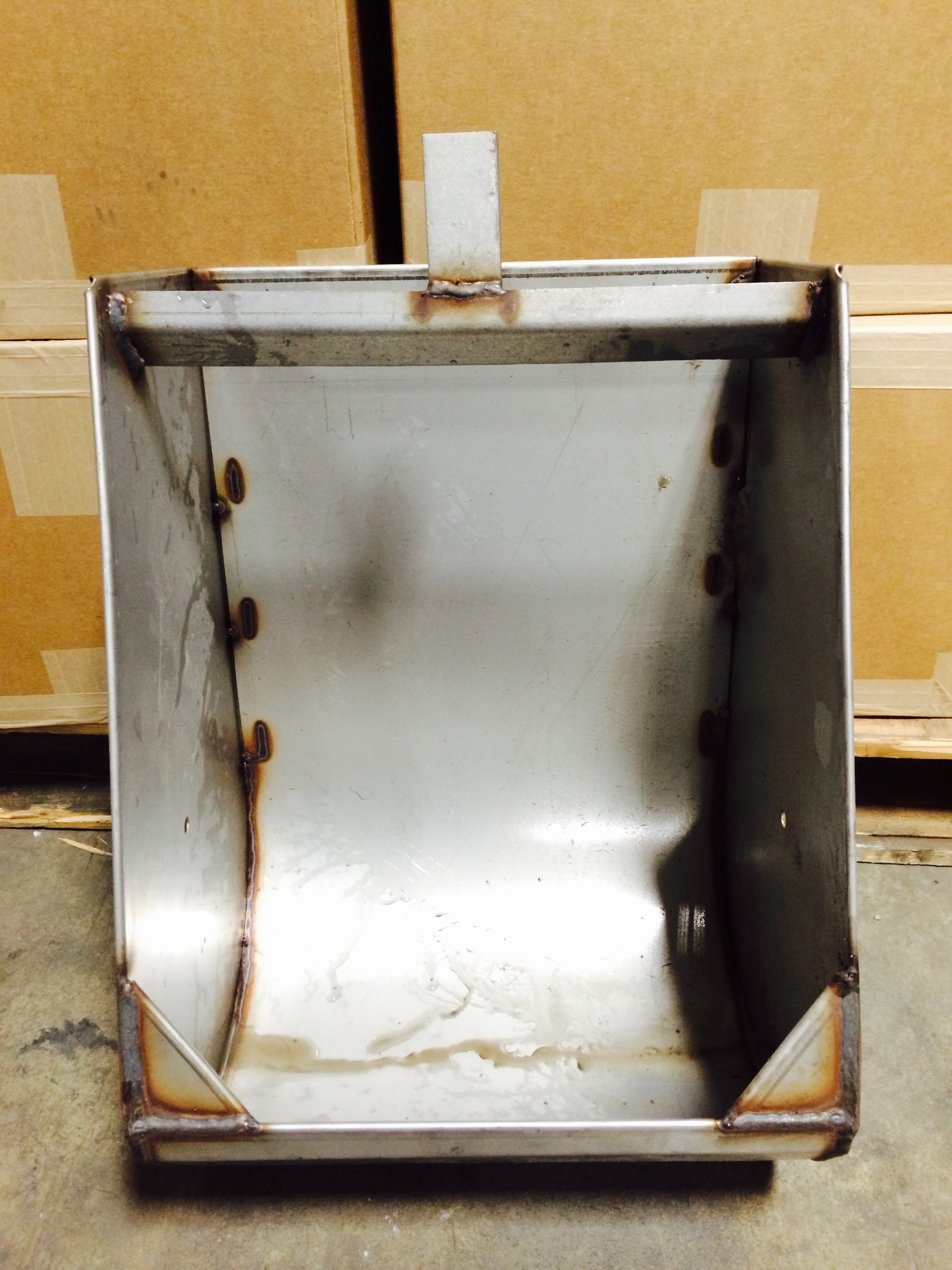

"Big Bertha" Tipout
Econo Bertha Feeder

• 16 gauge 304 stainless steel
• Taller curved lip prevents feet from dragging feed out and minimizes feed waste
• Wide opening and solid sides eliminates sows from moving head side-to-side and wasting feed.
• Used with nipple water
• Has less of a front angle lip which prevents feed build up
• Weld spools on existing crate to fit door (4 needed per crate)
• Feeder Dimensions: 14-7/8 wide x 12" deep x 21" tall



• Door Dimensions: 33-1/4" tall x 20-3/4" wide
  22" wide center of spool to center of spool
  22-3/4" wide outside spool to outside of spool
  Feeder opening 15" wide x 21" tall

Spool for Farrowing Crate End Frame/Door
(Sold individually - 4 needed per crate)

• Can be used with cup waterer
• Manufactured with 304 stainless steel
• Round bottom means no corners to catch and trap feed
• Easier access for larger sows
• Easily removed for better cleaning with horizontal rod
• Weld spools on existing crate to fit door
  (4 needed per crate)



• Door Dimensions: 33-1/4" tall x 20-3/4" wide
  22" wide center of spool to center of spool
  22-3/4" wide outside spool to outside of spool
  Feeder opening 13" wide x 12" tall

• Feeder Dimensions (Round Bottom Sow Feeder)
  11-3/8" x 17" long
  10" tall by door
  8-1/2" tall from front lip and floor
  11" long inside of crate
  5" long outide of crate

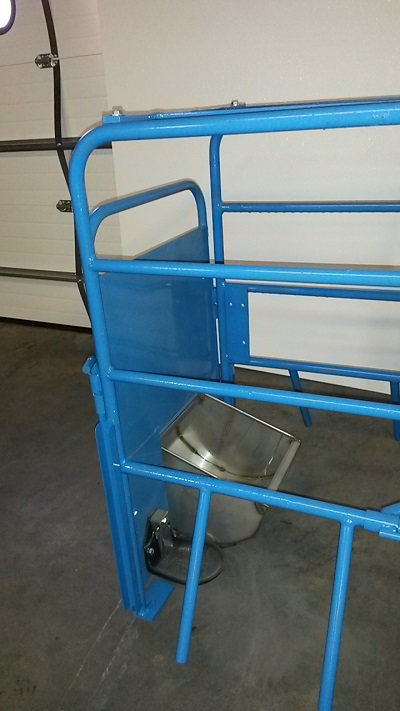

Round Pan Sow Feeder with Rod & Pin
(picture shows optional door & cast iron cup water)

Round Pan Sow Feeder
with Hopper & Activated Feed Dispenser

• Same features as Round Pan Sow Feeder with agitated hopper added
• Constructed of 304 stainless steel
• Round bottom means no corners to waste feed
• Available with or without nipple water
• Easily removed for better cleaning with horizontal rod



• Door Dimensions: 33-1/4" tall x 20-3/4" wide
  22" wide center of spool to center of spool
  22-3/4" wide outside spool to outside of spool
  Feeder opening 13" wide x 12" tall
