Sprinklers and Accessories


Meterman Econo-Cool Automatic Livestock & Poultry Cooling System ECONO-COOL offers producers an economical way to keep livestock & poultry comfortable and profitable during periods of warm weather. Our cooling systems are designed, manufactured, and tested in the American Hog Belt. Meterman has been designing and manufacturing cooing systems since 1971! During this time Meter-Man has become a world leader in designing and manufacturing cooling systems. The Meter Man Advantage Controller and Thermostat in one unit Do not need an electrician to install! "Like some of our competitors!" Safe 12 volt operation Remote mount solenoid in sealed case to protect from the environment In field repair (can fix at home!) Backed by more than 30 years of experience Easy to program Inexpensive to buy! Economical to own! The Meterman Econo-Cool Automatic livestock and Poultry Cooling System has been designed to control the flow of water based on the time and temperature setting you choose. The Econo-Cool controller will automatically activate the solenoid valve and allow water to flow to the emitters when the air temperature is warmer than the temperature setting of the thermostat. Once on, the Econo-Cool Controller will cycle on and off at preset intervals. The duration of these intervals is set independently on the other and can range from 1 to 55 minutes in length. The Econo-Cool controller will automatically shut off when the sir temperature drops below the temperature setting of the thermostat. Econo-Cool’s solid state controller is not bothered by voltage fluctuations . The time intervals or temperature settings are not lost due to power interruptions or failure

Econo-Cool Controller w/solenoid METECS500 Ordering Information

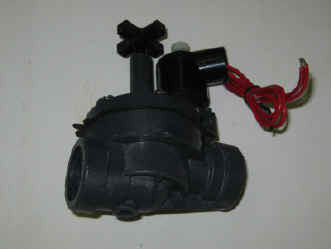

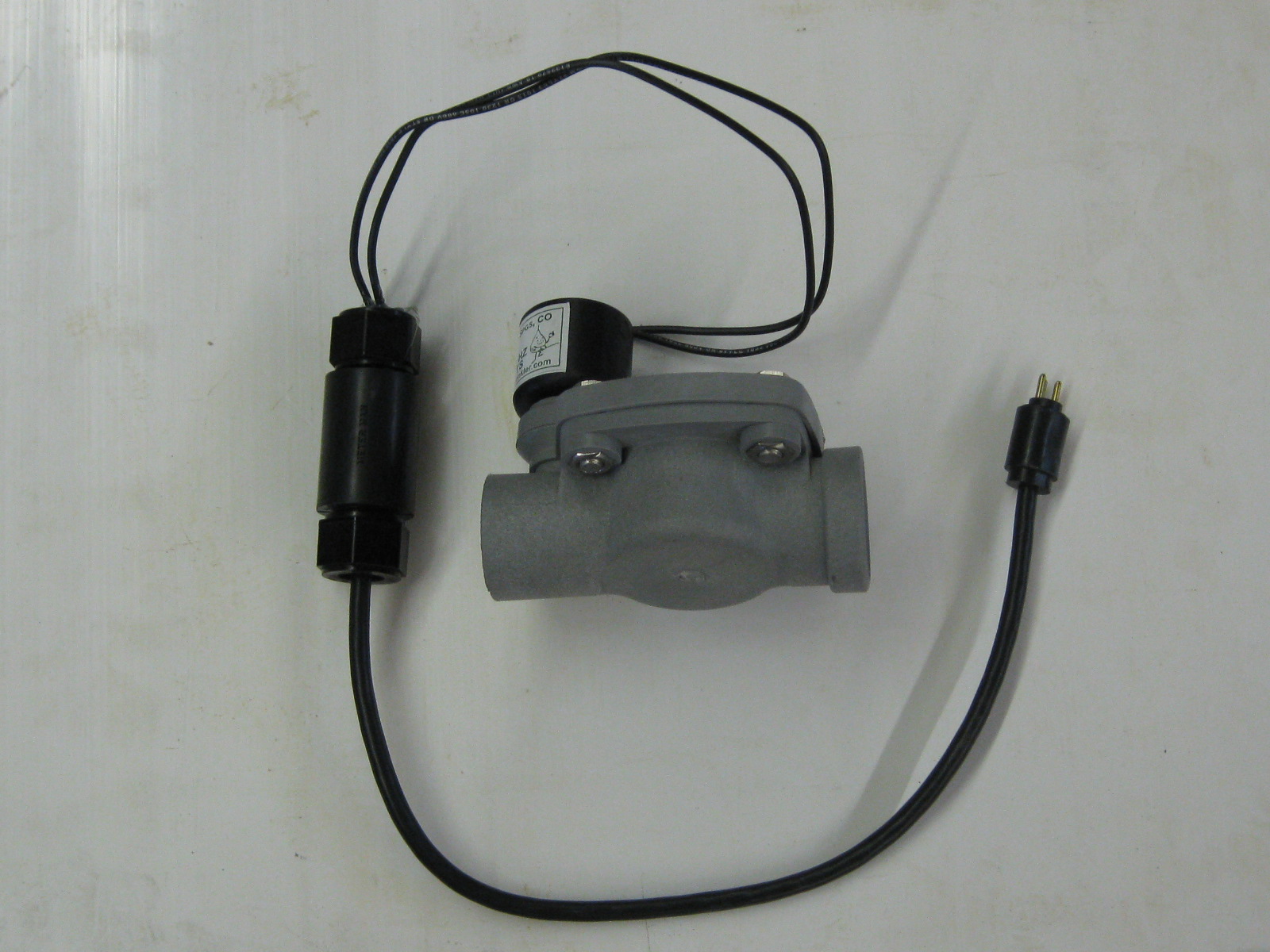

Meter-Man Solenoid - Only 24 volt 1" with 3/4" FPT Not in Box Inline Solenoid for Meterman Systems Recommended to use Check Valve & Filter (sold separately) METUCS152-24V Ordering Information	120 volt solenoid only (normally closed 1" FPT) Inline Solenoid Recommended to use Check Valve & Filter (sold separately) VITWR1221 Ordering Information

Filter (and filter casing) Attaches to water inlet side of solenoid. Prevents small particles from getting in and damaging solenoid. METUCS95 Ordering Information	Check Valve Attaches to water-outlet side of solenoid Prevents backflow of water through the solenoid. METUCS60 Ordering Information


Compression Tee Coupling ½" Compression x ½" Compression x ½" Compression. All fittings have compression joints. Used with flexible tubing. METUCS12 Ordering Information	Compression Elbow Compression fitting to make 90 degree turns. Used with flexible tubing METUCS24 Ordering Information	Compression Coupling Used to join two pieces of the ½" Flexible tubing METUCS56 Ordering Information

Female Swivel Coupling ¾" female garden hose thread (FGHT) x ½" compression. Used with flexible tubing METUCS10 Ordering Information	Male End Cap ¾" Male garden hose thread (MGHT) x ½" Compression. A screw on cap is included. Used at the end of flexible tubing. METUCS11 Ordering Information	Goof Plugs Solid Plug used to fill a hole in flexible tubing. METUCS06 Ordering Information

Hole Punch A tool used to make a small hole in the flexible tubing for installing the drippers, sprinklers, or misters. It is also used as a mister wrench METUCS07 Ordering Information	Filter (and filter casing) Attaches to water inlet side of solenoid. Prevents small particles from getting in and damaging solenoid. METUCS95 Ordering Information	Check Valve Attaches to water-outlet side of solenoid Prevents backflow of water through the solenoid. METUCS60 Ordering Information

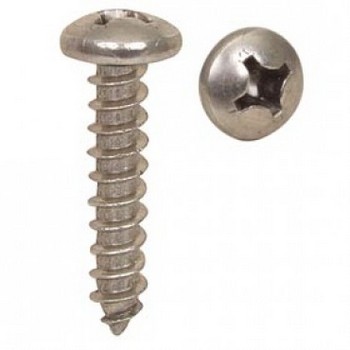

Cable Wire Ties Used to secure water lines METUCS15 Ordering Information	Screw Use with loop clamp (METUCS16) METUCS17 Ordering Information	Loop Clamp Used to secure water lines. Install with a screw (METUCS17) METUCS16 Ordering Information

Mist Emitter Emits a coarse mist of water in a 6 foot (1.8 meter) circle. Emits 5 gallons (19 liters) per hour. Used finishing pigs and dairy cows. METUCS05 Ordering Information	Sprinkler Emitter – 360 Degrees An adjustable, full circle sprinkler that will cover a 15 foot (4.5 meter) diameter circle at a height of 9 feet (2.7 meters). Emits approximately 12 gallons (45.5 liters) per hour. Used with finishing pigs and in poultry houses. METUCS23 Ordering Information	Droplet Emitter Used for sows in farrowing crates and gestation stalls. Emits 1.2 gallon (2 liters) per hour. METUCS04B Ordering Information

Sprinkler Emitter – 180 Degrees An adjustable, half circle sprinkler that will reach approximately 12 feet (3.7 meters) at a height of 9 feet (2.7 meters). Emits 10 to 12 gallons (38 liters to 45 liters) per hour. Used with finishing pigs and dairy cows METUCS64 Ordering Information	1/2" MPT 360 Degree Rotor Rain Sprinkler Red Nozzle, 52 GPH @ 15 PSI, 34' Diameter Commonly used in hog buildings to soak down. METUCS65 Ordering Information	1/2" MPT 360 Degree Rotor Rain Sprinkler Green Nozzle. 20 GPH @ 15 PSI, 26' Diameter Commonly used in Turkey Barns METUCS65-G Ordering Information
	Eighth-Inch Tubing (no Picture)
1/2" MPT x 6" long drop tube for sprinklers (sprinkler not included) METUCS64T Ordering Information	Eighth-Inch Tubing Flexible tubing available in 100 foot (30.5 meter) rolls. Used with drippers (METUCS04B) and to connect Sprinklers (METUCS23 to barbed check valves. METUCS14 Ordering Information	Half-Inch Tubing Flexible thin-wall tubing in 125 foot (38 meter) rolls. METUCS13 Ordering Information
