Controls


Varifan Controls
Programmable Main Controls

All Multifan Controls have a 2-year Warranty

Varifan IC-Series

  • Vostermans Ventilation has Varifan IC-Series in the delivery program.
  • This series of intelligent controls can be programmed with custom-made application software.
  • This allows the customer to define the use of inputs and outputs.

IC-68
Intelligent Control

  • 6 inputs, 8 outputs. 2 variable stages, 4 Multifan relays and 2 module ports with optional variable speed, curtain or on / off modules.
  • Able to network with other IC controls or computers. Time delay alarm relay.
  • User friendly interface with easy to read LED display, list of parameters and list of outputs with LED to show active outputs.
  • Customizable logic to adapt to your needs.

MULVFIC-68ND/S
Ordering Information

IC-610
Intelligent Control

  • 6 inputs, 8 outputs. 2 variable stages, 4 Multifan relays and 2 module ports with optional variable speed, curtain or on / off modules.
  • Able to network with other IC controls or computers. Time delay alarm relay.
  • User friendly interface with easy to read LED display, list of parameters and list of outputs with LED to show active outputs.
  • Customizable logic to adapt to your needs

MULVFIC-610/S
Ordering Information

MSC-10
Multi-Stage10 Master Control

  • 4 inputs, choice of inside / outside temperature, humidity static pressure or standby probe
  • 6 stages-2 variable stages and 4 on/off stages (10 AMP), expandable to 10 stage, variable or on/off, by adding up to 2 modules.
  • Customized programmable logic to fit your application.
  • User friendly interface with easy to read LED display, list of parameters and list of outputs with LED to show active outputs.

MULVFMSC-10/S
Ordering Information

Optional Modules to Use with IC-68, IC-610 or MSC-10

VSM2/2
Variable Speed Module

  • Adds variable speed stages to IC68, IC610 or MSC10 controls.
  • 2 stages per module
  • 6 amp nominal, 10 amp max

MULVFVSM-2/2
Ordering Information

CIP-1
Curtain/Inlet Module

  • Adds curtain control to IC68, IC610 or MSC10 controls.
  • 1 stage per module
  • 3 amp max

MULVFCIP-1/6/S
Ordering Information

CM10-2
On/Off Fan Module

  • Adds on/off stages to IC68, IC610 or MSC10 controls
  • 2 stages per module
  • 10 amp max

MULVFCM10-2/S
Ordering Information

ECS Series Multi-Stage Controls

All ECS Controls feature:

  • Ramping temperature reduction per day feature.
  • Hi / Lo temperature records to monitor room temperature to help control LP use.
  • Alarm contacts to trigger in case of Hi / Lotemperatures, loss of power or a defective control.
  • Optional humidity probe
  • Variable Stages 10 amp nom, 15 amp max
  • On / Off relays -10 amp max
  • Alarm relay -2 amp max

ECS-2M
2 Stage Control

  • 2 stages:1 variable stage,
  • 1 heater or on/off relay

MULVFECS-2M/S
Ordering Information

ECS-3M
3 Stage Control

  • 3 stages: 2 variable stages, 1 heater or on/off relay

MULVFECS-3M/S
Ordering Information

ECS-4M
4 Stage Control

  • 4 stages: 2 variable stages,
  • 1 heater or on/off relay, 1 on/off relay for additional fan, drip system, etc.

MULVFECS-4M/S
Ordering Information

Non-Programmable Controls & Thermostats

MVS-1
Manually Variable Speed Control

  • Will manually control speed of 1 or a group of variable speed fans.
  • 15 amp max capacity

MULVFMVS-1/S
Ordering Information

T-15 WD Thermostat

  • Mechanical thermostat with single pole and 2-way on/off switch.
  • 110 volt, 10 amp max capacity
  • Thermostat only

MULTT15WDCAM1A
Ordering Information

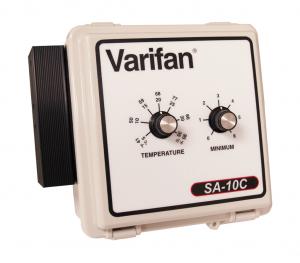

SA-10/C
Automatic Variable Speed Control

  • Will automatically control speed of 1 or a group of variable speed fans based on set minimum speed and temperature.
  • Internal switch to have fan shut off below set point.
  • Differential of variable speed can be set from 1 to 6 degrees with internal switch
  • 2 control knobs: 1 for desired temperature and 1 for idle speed.
  • 10 amp nominal, 15 amp max load

MULVFSA-10/C
Ordering Information

CPS-1 Curtain / Inlet Control

  • Controls curtain by temperature or static pressure
  • Manual open and close function
  • Time on and time off can be set separately
  • Hi / Lo temperature record and alarm contact.
  • Replaces Honeywell thermostat for AT-Newell Curtain Machines.
  • CPS-2 control available to control 2 curtains separately on the same probe

MULVFCPS-1/S
Ordering Information
